Fan Free Terminal POSIFLEX FAN FREE POS-TERMINAL KS 7215 1 ks_7215

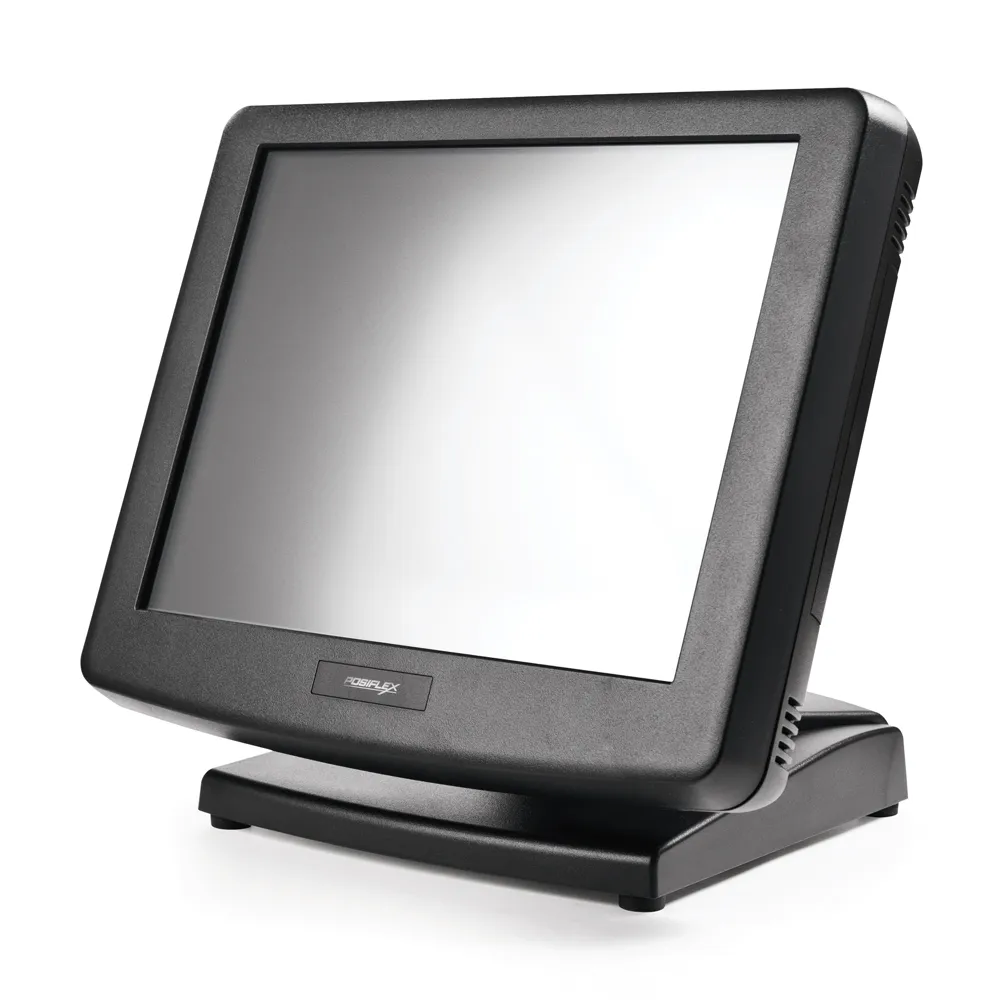

POSIFLEX FAN FREE POS-TERMINAL KS 7215

Home /

Products /

Feature
• Resistive, IR, Bezel-free Resistive, or Bezel-free PC touch screen for 15" LCD Spill-resistant design to prevent careless spill and provide easy cleaning for a wide range of applications Equipped with Intel Pine View Dual Core D525 1.8 GHz CPU and DDR3 memory Fan-free design boasting quiet and anti-dust features Patent aluminum die casting design for efficient cooling RAID 1 support to backup important data (Optional)
• UPS (Embedded on board developed by Posiflex) support to avoid sudden power loss (Optional) Patent finger lever œGear Lock to adjust the LCD tilt angle from 15° to 70°
• Push-open cover to protect power switch from accidental shutdown
• Bottom cable guide design and cover for safety and neat outlook
• User-friendly mechanism for system upgrade and easy maintenance Shinny diamond black, red or white front bezel for stunning look (Optional for KS-7215)
• Wall-mount capable (Optional)

Specification
Model	Posiflex KS-7215
Processor	Intel Pine View D525 1.8 GHz / 1 M Cache CPU Dual Core)
System Memory	DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 1 GB
Storage Device	2.5 SATA HDD or SSD Kit (Optional) or CF Kit (Optional)
Power Supply	12 VDC Adaptor, 60W (Optional 80W when equipping with 2nd LCD LM-8015/8025/8035/8045/8055/TM-8045)
Audio	2W speaker
OS support	Win 7 / Win XP Pro / POSReady 7 / POSReady 2009 / Linux
Color	Black
Display
LCD	15 TFT LCD, 1024x768 resolution Resistive, 5-wire, USB Interface / IR touch, USB Interface Bezel-free, Resistive touch, USB Interface Bezel-free, PC touch, USB Interface
Brightness Control	By digital push botton Tilt Adjustment
Connectivity
LAN Port	10 / 100 / 1000 Mb
Parallel Port	Optional
Serial Port	DB9 x2, RJ-45x2 (Optional RJ-45 to DB9 cable), with 5V/12V support on COM1/COM2/COM3/COM4 UPS Port
Standard USB Port	6
Proprietary USB Port	1 for side mount optional
VGA Port	D-SUB 15 Pin, with 12V power for Posiflex LCD Monitor
CR Port	1, Control 2 CR
Physical Dimension
Dimension
(W x D x H in mm)	378 X 304 X 364 (KS-7215)
Weight (N. W. in kg)	7.7 (KS-7215)
Environment
Operation Condition	0°C - 40°C, 20%RH - 90%RH (Equipped with HDD) ; 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition	(-20°C) - 70°C, 10%RH - 90%RH
Options
PD-306 / PD-306U	2 x 20 LCD, default 200 mm pole
PD-2602 / PD-2602U	2 x 20 VFD, default 200mm pole
PD-76X2	240 x 64 dot graphics LCD, 200 mm pole
SSD	8 GB minimum
CF Card	Type I card
MSR	See Security Device
Security Device (SD)	SD-400/SD-400Z: 2 or 3 tracks MSR (JIS-II optional) and/or Finger Print Sensor SD-600: 2 or 3 tracks MSR (JIS-II optional) and/or iButton SD-700: 2 or 3 tracks MSR (JIS-II optional) and/or Bar Code Card Reader SD-800: 2 or 3 tracks MSR (JIS-II optional) and/or RFID and/or WiFi
UPS Battery	2300mAh/12V
RAID Function	Support RAID 1 (Disk Mirroring)
2nd LCD Display	15 LM-6501/8015/8025/8035/8045/8055/TM-8045
2nd HDD	Yes
KP-300W	36 Key plus lock keypad and/ or MSR and/or Smart Card Reader
