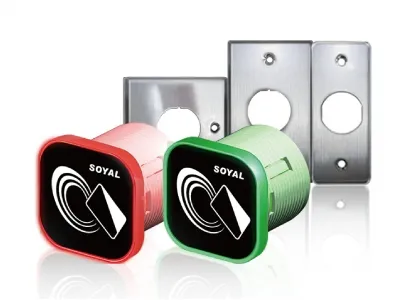

Proximity Controller (Reader) AR-101 (H) 1 ar_101_h

AR-101 (H)

Name
Proximity Controller
Description
Ultra-mini RS485 Proximity Controller with stainless steel panel by order!

Features
• Selectable working frequencies: 125kHz/ 13.56MHz
• User capacity: 1,024; Event log: 1,200
• Built¬in Watchdog to prevent system from hanging
• Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
• Built¬in Multi¬Output: Door Lock/ Alarm/ Security trigger signal
• Have the "MASTER CARD" functions, convenient operation
• Mini Flush¬Mounted design gives neat installation
• Elegant design with colorful Edge Indicator

Specification
Frequency	125kHz or 13.56MHz
Standard	125kHz : EM Standard \| 13.56MHz : ISO14443A \| DESFire
Reading Range	125kHz : 2-5cm \| 13.56MHz : 1-3cm
Power Supply	9-24VDC
Power Consumption	< 1W
Communication Interface	RS-485
Data Transfer Rate	9600 bps(N,8,1)
Operating Temperature	-20℃ to +60℃
Digital Input	Egress(R.T.E.) / Door contact
Output	Digital Output: Door / Alarm
Lock Relay Time	Toggle, 0.1~600 Sec.
Alarm Time	Toggle, 1~600 Sec.
Tamper Switch	No
User Capacity	1.024
Event Log	1.200
External Reader	1 WG Port
Anti-pass-back	Yes
Lift Control	32 Floors, 1,024 Users
Serial Port	Yes
Real Time Clock	Yes
LCD Panel	No
Door Bell Button	No
Transistor Output	Lock/ Alarm / Security trigger signal
Protection Standard	No
Indicator	1 Bi-Color LED & 1 Beeper
Keypad Material	No
Housing Material	ABS (Optional: Stainless Steel)
Time Zone	11/63(Connect to Multi-Door Networking Controller)
Operation Mode	Stand-Alone / Networking
Color	Black Label Sticker Customized Label Available
Dimensions(mm)	37(L)X37(W)X31(H)
Weight(g)	26±10
